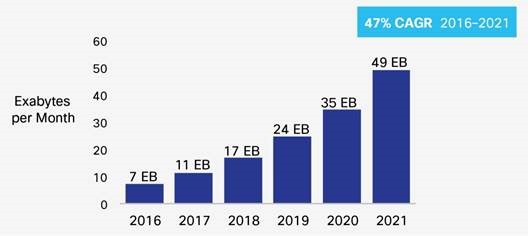

The mobile industry has long anticipated the arrival of 5G, with many expecting it to become available around 2020 or 2021, even if not yet widely adopted. However, as mobile data traffic has surged—growing 18 times over the past five years—the need for 5G is accelerating faster than previously thought. According to Cisco, by 2021, 5G connections are expected to generate 4.7 times more traffic than standard 4G connections. This trend is clearly illustrated in Figure 1.
Compared to today’s LTE-Advanced networks, 5G represents a significant leap forward. To facilitate this transition, there are five key areas that will guide the shift from 4G to 5G. Four of these areas will be part of an intermediate phase known as LTE-Advanced Pro (often referred to as 4.5G), making the evolution more gradual and manageable for operators.
**Speed and Throughput**
One of the most notable improvements in 5G is the increase in speed. While LTE-Advanced offers up to 1 Gbps, 5G is designed to deliver up to 20 Gbps per cell. This enhancement will occur through multiple stages, starting with LTE-Advanced Pro. This technology already supports advanced features such as carrier aggregation (up to 32 carriers), massive MIMO (with up to 16 antennas), and higher-order modulation like 256 QAM. These innovations can push speeds up to 3 Gbps, helping operators make the most of their existing infrastructure before full 5G deployment.
This intermediate step allows operators to gradually upgrade their networks without requiring complete overhauls. It’s a practical approach that enables early 5G adoption while maintaining service quality.
**Unlicensed Spectrum Use**
Another important aspect of 5G is the utilization of unlicensed spectrum. Currently, operators like T-Mobile and Verizon are experimenting with LTE-U (LTE in unlicensed bands), while AT&T is exploring virtualized solutions. Wi-Fi, which has been using unlicensed spectrum for years, is becoming increasingly relevant for 5G. Although Wi-Fi is not regulated, its performance has improved significantly with technologies like LDPC error correction, higher-order QAM (up to 1024 QAM in the future), and multi-user MIMO. Expanding carrier aggregation into unlicensed bands could give operators more flexibility in increasing network capacity.
**IoT Devices**
The Internet of Things (IoT) presents both challenges and opportunities for 5G. With billions of devices expected to connect, 5G must support a wide range of use cases—from low-power sensors to high-bandwidth applications. Many IoT devices operate in sleep mode and only transmit small data packets, requiring efficient network planning. Additionally, security remains a concern, as vulnerable IoT devices can be exploited for malicious purposes. Operators are working to ensure that 5G networks can handle these demands alongside traditional devices like smartphones.
**Virtualization: NFV and SDN**
Network Function Virtualization (NFV) and Software-Defined Networking (SDN) are playing a critical role in shaping 5G. These technologies allow operators to reduce costs, improve network flexibility, and scale efficiently. As 5G introduces new use cases—ranging from ultra-low latency to massive data transfers—virtualization becomes essential. For example, NFV enables the core network to be split based on the type of data being transmitted, as shown in Figure 3.
Operators are already adopting these technologies, especially in packet core networks, which are IP-based and well-suited for virtualization. Even at the access layer, discussions are ongoing about how to balance edge processing with centralized management, ensuring a smooth path to 5G.
**New Radio (NR)**
The final key area is the development of the new 5G air interface, also known as New Radio (NR). Unlike previous generations, NR is not yet standardized and will require new wireless access technology. It will leverage millimeter wave (mmWave) frequencies—between 30 GHz and 300 GHz—to achieve ultra-high speeds. Each cell is expected to offer 10–20 Gbps of bandwidth, with individual users potentially reaching 1 Gbps. Applications like high-end AR/VR will rely on this capability.
The new radio interface is where true 5G begins. The other four areas have established foundations in LTE-Advanced Pro, making them more evolutionary. After the 2017 Mobile World Congress, the 3GPP conference in Dubrovnik advanced the 5G specification timeline, pushing some releases to 2018.
Key challenges for the new air interface include supporting flexible OFDM technology and enabling massive MIMO for mmWave usage. These innovations will allow 5G to serve both high-bandwidth and low-latency applications simultaneously, paving the way for a truly transformative network.
