FP5138 application circuit

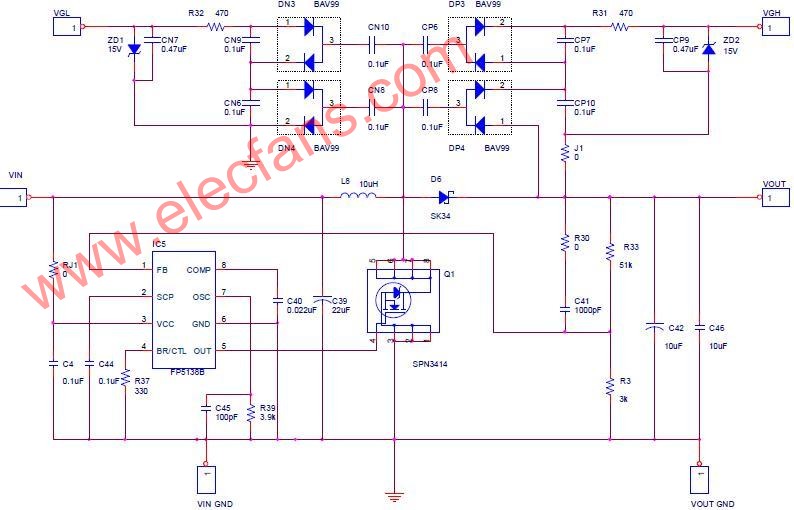

This boost converter (Boost Converter) provides a set of +9.0V output +9.0V output voltage. Two sets of output designs use Charge Pump for -15V and +24V respectively. In many practical applications, supply systems with dual power supplies or more, such as OPA or LCD Panel, are required.
By using a simple change from the basic boost converter, you can get the extra power you need. In the above application line, the Charge Pump is taken out by capacitive coupling of the boost converter inductor and the transistor and the SBD end, and the energy is converted by the Switching Voltage Waveform to the required auxiliary power output.
